We can provide you overvalue services :( one -stop service for poultry farm )
1. Poultry House site Selection
2. Poultry House Design and Construction Preparation Guidance.
3. Poultry house construction
4. Breeding Equipment Installation
5.After-sale Services
Main parts of the steel structures and technical parameters:
Main Steel Frame System | |
Main structure | H section steel Q235B, alkyd painting, two times painting |
Roof purlin | C140*50*20*2.0, hot-dip galvanized ,cold-formed thin-walled steel |
Wall purlin | C120*50*20*2.0, hot-dip galvanized ,cold-formed thin-walled steel |
Intensive bolt | Grade 8.8 |
Anchor bolt | M24, steel Q235B, processing |
Ordinary bolt | Galvanized bolt M12 Strength: 8.8 |
Bracing System | |
Tension bar | Φ20 round steel barQ235, process and painted |
Angle brace | L40*4 angle steelQ235 , process and painted |
Column brace | Φ20 round steel barQ235 , process and painted |
Tie bar | Φ89*2 steel pipe Q235, process and painted |
Horizontal brace | Φ20 round steel barQ235 , process and painted |
Wall & Roof System | |
Roof Outer panel | 0.4mm color steel, V-860-type |
Glass wool | Thickness: 16kg / m³ |
Roofing floor | 0.4mm color steel ,V-910 |
Wall panel | 0.4 / 50mm foam / 0.4mm,Foam Bulk density: 8kg / m³ ,Wattage: V-950 |
Door | 0.4 / 75mm foam / 0.4 composite panels |

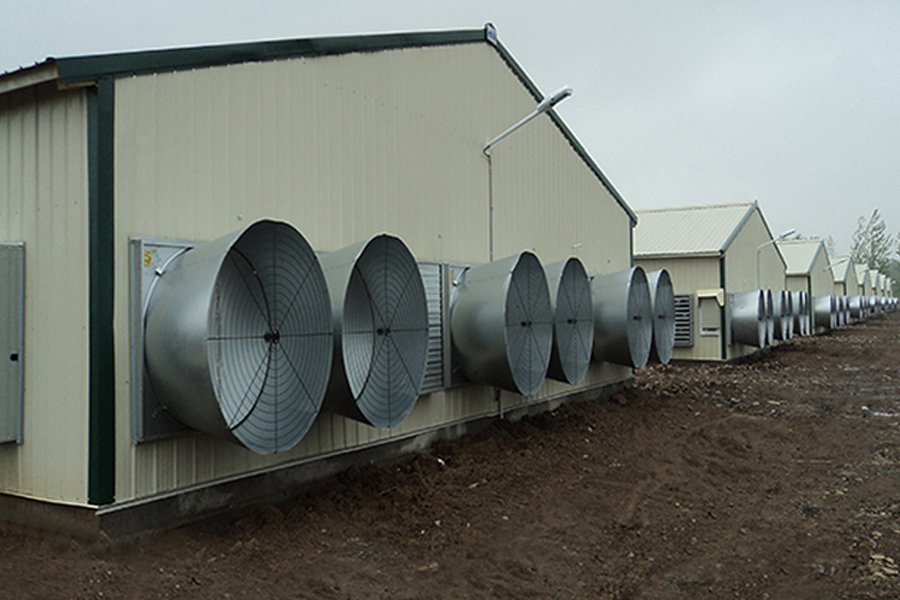

Broiler Poultry house advantages:
1. Light weight, reliable work and well sealed.
2. Excellent anti-shock and anti-impact ability.
3. Can be assembled accurately and rapidly, construction period is short.
4. We have a group of professional engineers, most of whom has more than 10 years' experience in architecture field.
5. We also have possessed more than 80 sets of large precise and domestically advanced processing equipment, including large gantry planning machines, automatic submerged are welding machines, assembling machines, slitters, shot blasting machines and so on.
6. Besides manufacture according to customers' requirements, we also established a set of production standards. With perfect technique, excellent quality, reasonable price, top-grade service,we have won the consistent favor from customers at home and abroad.
7. Recyclable.
